For a data visualization project I'm working on, I wanted to get concert information on the Red Hot Chilli Peppers (RHCP). More specifically, I wanted to scrape their tour website so this post will show you how to do that.
I'll be using node 10.9.0 for this guide but you should be able to use it with any recent version.
npm i -g yarn
#main packages
yarn add request request-promise simplecrawler cheerio
yarn add dotenv lodash.merge lodash.range geojsonThe first component that we will tackle is the PageScrapper.

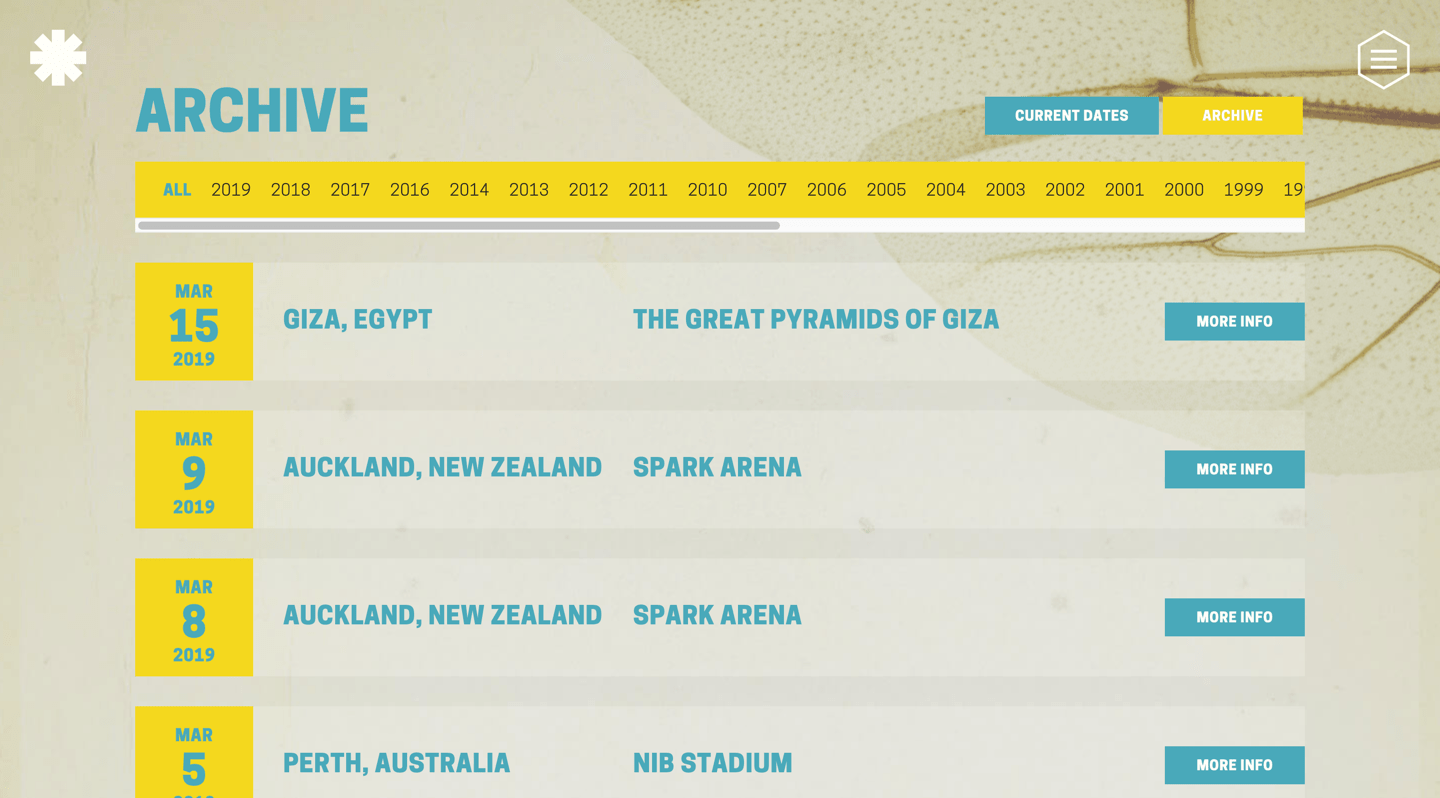

Before we start writing any code, let's get an idea of the HTML structure we're parsing. Openning up https://redhotchilipeppers.com/tour/past we see this page:
On opening the Chrome inspector tools and focusing on one entry, we can figure out how we want to parse this page:
We want to narrow our focus on the event-list class that has the list of concerts. Drilling down even further, we observe the event-list-item class where we will pick up the important pieces of information:
Great, let's first pull this webpage into our code:
index.js
const rp = require('request-promise');
const $ = require('cheerio');
const url = 'https://redhotchilipeppers.com/tour/past';
rp(url)
.then(function(html){
//success!
console.log($('.event-list-item', html).length);
})
.catch(function(err){
//handle error
});Running
node index.jsshould present a number of 50 in the console, or whatever the number of entries you see on that page.
Great, you've successfully pulled the first page from the tour website. Let's move on to actually getting all the info we want (listed above) in a clean format.
src/PageScrapper.js
function PageScrapper({ parser = null }) {
if (!parser) {
throw new Error('A parser needs to be defined');
}
this.$ = parser;
}
PageScrapper.prototype.scrape = function(html) {
const $ = this.$;
const numItems = $('.event-list-item', html).length;
const $eventMonths = $('.event-list-item-date-month', html);
const $eventDays = $('.event-list-item-date-day', html);
const $eventYears = $('.event-list-item-date-year', html);
const $eventLocations = $('.event-list-item-location a', html);
const $eventVenues = $('.event-list-item-venue a', html);
const events = [];
for (let i = 0; i < numItems; i++) {
let event = {};
const date = {};
date.month = $eventMonths.eq(i).text();
date.day = $eventDays.eq(i).text();
date.year = $eventYears.eq(i).text();
const location = $eventLocations.eq(i).text();
let loc = {};
if (location === '?' || '') {
loc = null;
} else {
loc.name = location;
}
event.venue = $eventVenues.eq(i).text();
event = {
...event,
location: loc,
date
};
events.push(event);
}
return events;
};
module.exports = PageScrapper;Our PageScrapper factory takes in a parser as an argument. In our case, we will use cheerio but to keep it flexible, we can use another drop in replacement should we need to in the future.
You'll notice that there's a conditional ? when testing for the location. If you look at some of the last pages, the location is unknown and shown with a question mark. I've decided to make the location key null in these cases.
The heavy lifting is done by the scrape function which takes in the web page (an html string) as an argument and then returns the list of concerts (events) in the following format:
{
"venue": "Band Together Bay Area",
"location": { "name": "San Francisco, CA"},
"date": { "month": "Dec", "day": "14", "year": "2017" }
}Great, let's setup this parser and call it on our webpage.
const rp = require('request-promise');
const $ = require('cheerio');
const url = 'https://redhotchilipeppers.com/tour/past';
const PageScrapper = require('./src/PageScrapper');
const pScrapper = new PageScrapper({ parser: $ });
rp(url)
.then(function(html) {
console.log($('.event-list-item', html).length);
const scrapedResult = pScrapper.scrape(html);
console.log(JSON.stringify(scrapedResult, null, 4));
})
.catch(function(err) {
//handle error
});
Which will output the 50 entries in the format we've defined above.
We now know that our parser works correctly given the HTML. Let's now move on to building a web crawler that goes through all the concert pages and gives it to the parser. We'll then join all the individual lists to make our final list of concerts.

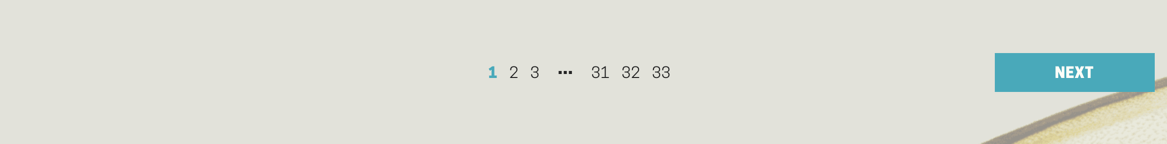

How do we do that? Let's look at our main page at https://redhotchilipeppers.com/tour/past. Scroll to the bottom and you see this pagination:

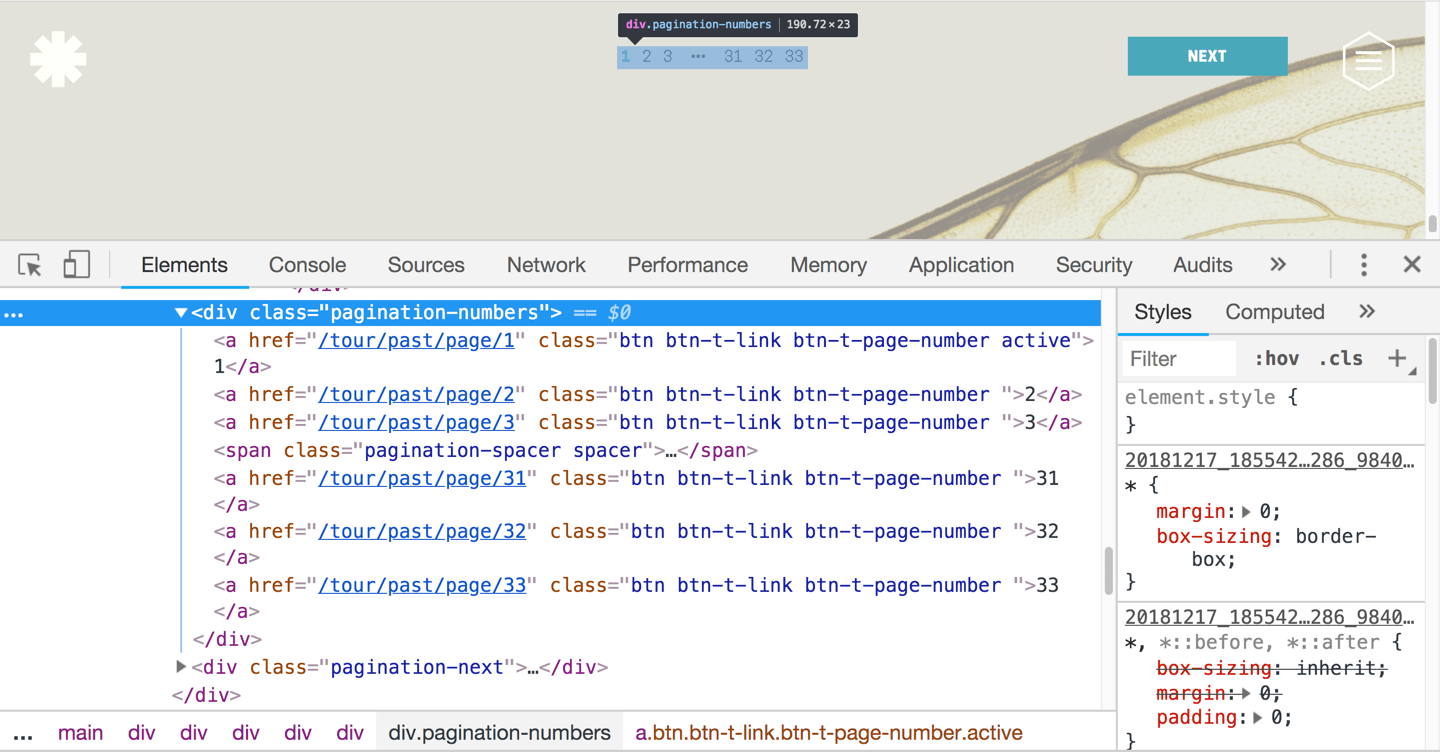

Inspecting this element we see this:
We'll need to get the list of href elements under the class pagination-numbers, filter by non active classes and then pick the first and last items. We'll then create a range from the first to the last items and create a url for each page that will be added to the sources to discover.
src/Crawler.js
const cheerio = require('cheerio');
const SimpleCrawler = require('simplecrawler');
const range = require('lodash.range');
const Promise = require('bluebird');
const PageScrapper = require('./PageScrapper');
const pScrapper = new PageScrapper({ parser: cheerio });
function Crawler({ baseUrl = null, startUrl = baseUrl }) {
if (!baseUrl || !startUrl) {
throw new Error('baseUrl and startUrl paramerters need to be defined');
}
this.baseUrl = baseUrl;
this.startUrl = startUrl;
this.crawler = new SimpleCrawler(this.startUrl);
}
Crawler.prototype.start = function() {
return new Promise((resolve, reject) => {
this.crawler.maxDepth = 1;
this.crawler.interval = 10000; // Ten seconds
this.crawler.maxConcurrency = 3;
const results = [];
this.crawler.on('fetchcomplete', (queueItem, responseBuffer) => {
console.log('fetch complete for ', queueItem.url);
const scrapedResult = pScrapper.scrape(responseBuffer.toString('utf8'));
results.push(scrapedResult);
});
this.crawler.on('complete', (queueItem, resources) => {
var merged = [].concat.apply([], results);
console.log('Results Size', merged.length);
resolve(merged)
});
this.crawler.discoverResources = buffer => {
const $ = cheerio.load(buffer.toString('utf8'));
const hrefs = $('.pagination-numbers a[href]').filter(function() {
return !$(this).hasClass('active');
});
const numMatch = /(\d+)/;
const firstHref = hrefs.first().text();
const lastHref = hrefs.last().text();
try {
const startPagination = parseInt(numMatch.exec(firstHref)[0]);
const lastPagination = parseInt(numMatch.exec(lastHref)[0]);
const urls = range(startPagination, lastPagination + 1).map(
num => `${this.baseUrl}/tour/past/page/${num}`
);
return urls;
} catch (e) {
console.log(e);
return [];
}
};
this.crawler.start();
});
};
module.exports = Crawler;
Our crawler starts with an intial page to discover which in our case is https://redhotchilipeppers.com/tour/past
The crawler.discoverResources function takes this page and extracts the pagination links and adds them to the queue of pages for the crawler to move to.
Each page, including the start page is passed to the fetchcomplete event for further processing. Here we pass the HTML to our PageScrapper to extract our data and append it to the results array.
After all the pages have been visited in the queue, the complete event is called where we just concatenate all the individual result array and flatten it.
We set maxDepth = 1 for now to test our code. This will ensure that only the initial page is pulled.
Once we're happy with our program, we'll set maxDepth = 2 to ensure that other than the initial page, the crawler doesn't add the pagination links for the new pages discovered from the initial link. The number of pages will most likely been the same during the crawl.
Let's try running the crawler:
const Crawler = require('./src/Crawler');
const baseUrl = 'https://redhotchilipeppers.com';
const startUrl = `${baseUrl}/tour/past`;
const crawler = new Crawler({ baseUrl, startUrl });
crawler.start().then(data => {
console.log(JSON.stringify(data));
});
You've now successfully pulled all the info from all the past concerts!
Our data looks like this:
{
"venue":"The Great Pyramids of Giza",
"location":{
"name":"Giza, Egypt"
},
"date":{
"month":"Mar",
"day":"15",
"year":"2019"
}
}We want to transform it into this:
{
"venue": "The Great Pyramids of Giza",
"location": {
"name": "Giza, Egypt",
"lat": "30.0170059",
"lon": "31.2134513",
"address": {
"city": "Giza",
"state": "Giza Governorate",
"postcode": "12541",
"country": "Egypt",
"country_code": "eg"
},
"timezoneId": "Africa/Cairo"
},
"date": {
"month": "Mar",
"day": "15",
"year": "2019"
},
"geojson": {
"type": "Feature",
"geometry": {
"type": "Point",
"coordinates": [31.2134513, 30.0170059]
},
"properties": {
"venue": "The Great Pyramids of Giza"
}
}

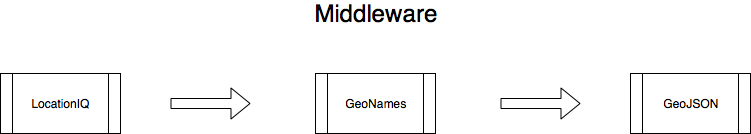

}We'll do it through a series of plugins using middleware that transforms the data before returning it from the crawler.
The plugins will be named:
They'll run in sequential order. We'll look at the LocationIQ plugin first.
src/plugins/LocationIQ.js
require('dotenv').config();
const Promise = require('bluebird');
const rp = require('request-promise');
const baseUrl = 'https://eu1.locationiq.com/v1/search.php';
const locationIQOptions = ({ location }) =>
`${baseUrl}?key=${process.env.LOC_IQ_API_KEY}&q=${encodeURI(
location
)}&format=json&limit=1&addressdetails=1`;
function LocationIQ({
/* highlight-start */
fn = null,
fieldsFn = (data, dataToAdd) => ({ ...data, dataToAdd }),
mergeFn = data => data
/* highlight-end */
}) {
const cache = {};
return data => {
return new Promise((resolve, reject) => {
const location = fn.call(this, data);
if (!location) return resolve(data);
if (cache[location]) {
console.log('cache hit for ', location);
return resolve(mergeFn({ data, dataToAdd: cache[location] }));
}
Promise.delay(501)
.then(() =>
rp({ uri: locationIQOptions({ location }), json: true }).then(
response => {
const locationData = fieldsFn(response[0]);
cache[location] = locationData;
return resolve(mergeFn({ data, dataToAdd: locationData }));
}
)
)
.catch(reject);
});
};
}
module.exports = LocationIQ;We'll be using a service called Location IQ that has a good free tier. We just need to make sure to reduce the frequency of our calls to the API which we do in line 26.
Go ahead and register for an account and copy your API key into the .env file. This is used by dotenv to pull the key into our plugin thereby securing it. You don't want to commit .env to your source control.
.env
LOC_IQ_API_KEY=**YOUR_LOCATION_IQ_API_KEY**Coming back to our LocationIQ.js plugin, our function takes in 3 parameters:
Let's try running it on our dataset:
index.js
const Crawler = require('./src/Crawler');
const baseUrl = 'https://redhotchilipeppers.com';
const startUrl = `${baseUrl}/tour/past`;
const crawler = new Crawler({ baseUrl, startUrl });
const merge = require('lodash.merge');
const Promise = require('bluebird');
const getFields = (fields = null) => {
return data => {
if (fields) {
const result = {};
fields.forEach(field => {
result[field] = data[field];
});
return result;
}
return data;
};
};
const mergeOutput = (output = null) => {
return ({ data, dataToAdd }) => {
if (output) {
return merge(data, { [output]: dataToAdd });
}
return merge(data, dataToAdd);
};
};
const LocationIQ = require('./src/plugins/LocationIQ')({
fn: data => {
if (!data.location) return null;
return data.location.name;
},
fieldsFn: getFields(['lat', 'lon', 'address']),
mergeFn: mergeOutput('location')
});
crawler.start().then(data => {
Promise.mapSeries(data, LocationIQ).then(result => {
console.log(JSON.stringify(result));
});
});
Which will output a list of items, each having the structure like this:
{
"venue": "The Great Pyramids of Giza",
"location": {
"name": "Giza, Egypt",
"lat": "30.0170059",
"lon": "31.2134513",
"address": {
"city": "Giza",
"state": "Giza Governorate",
"postcode": "12541",
"country": "Egypt",
"country_code": "eg"
}
},
"date": {
"month": "Mar",
"day": "15",
"year": "2019"
}
}We now want to feed this to another plugin GeoNames, that we'll create now to get the location timezone. Go ahead and create an account at http://www.geonames.org and add your key to the .env file.
LOC_IQ_API_KEY=**YOUR_LOCATION_IQ_API_KEY**
GEO_NAMES_API_KEY=**YOUR_GEO_NAMES_API_KEY**src/plugins/GeoNames.js
require('dotenv').config();
const Promise = require('bluebird');
const rp = require('request-promise');
const baseUrl = 'http://api.geonames.org/timezoneJSON';
const geoNamesOptions = ({ lat, lon }) =>
`${baseUrl}?lat=${lat}&lng=${lon}&username=${process.env.GEO_NAMES_API_KEY} `;
function GeoNames({
fn = null,
fieldsFn = (data, dataToAdd) => ({ ...data, dataToAdd }),
mergeFn = data => data
}) {
const cache = {};
return data => {
return new Promise((resolve, reject) => {
const location = fn.call(this, data);
if (!location) return resolve(data);
const [lat, lon] = location;
if (cache[`${lat},${lon}`]) {
console.log('cache hit for ', `${lat},${lon}`);
return resolve(mergeFn({ data, dataToAdd: cache[`${lat},${lon}`] }));
}
rp({ uri: geoNamesOptions({ lat, lon }), json: true })
.then(response => {
const locationData = fieldsFn(response);
cache[`${lat},${lon}`] = locationData;
return resolve(mergeFn({ data, dataToAdd: locationData }));
})
.catch(reject);
});
};
}
module.exports = GeoNames;We follow the same process as in LocationIQ to figure out the timezone from the latitude and longitude.
const Crawler = require('./src/Crawler');
const baseUrl = 'https://redhotchilipeppers.com';
const startUrl = `${baseUrl}/tour/past`;
const crawler = new Crawler({ baseUrl, startUrl });
const merge = require('lodash.merge');
const Promise = require('bluebird');
const getFields = (fields = null) => {
return data => {
if (fields) {
const result = {};
fields.forEach(field => {
result[field] = data[field];
});
return result;
}
return data;
};
};
const mergeOutput = (output = null) => {
return ({ data, dataToAdd }) => {
if (output) {
return merge(data, { [output]: dataToAdd });
}
return merge(data, dataToAdd);
};
};
const LocationIQ = require('./src/plugins/LocationIQ')({
fn: data => {
if (!data.location) return null;
return data.location.name;
},
fieldsFn: getFields(['lat', 'lon', 'address']),
mergeFn: mergeOutput('location')
});
const GeoNames = require('./src/plugins/GeoNames')({
fn: data => {
if (!data.location) return null;
if (!data.location.lat || !data.location.lon) return null;
return [data.location.lat, data.location.lon];
},
fieldsFn: getFields(['timezoneId']),
mergeFn: mergeOutput('location')
});
crawler.start().then(data => {
const plugins = [LocationIQ, GeoNames];
const pluginReducer = data => {
return Promise.reduce(plugins, (obj, func) => func(obj), data);
};
Promise.mapSeries(data, pluginReducer).then(result => {
console.log(JSON.stringify(result));
});
});{
"venue": "The Great Pyramids of Giza",
"location": {
"name": "Giza, Egypt",
"lat": "30.0170059",
"lon": "31.2134513",
"address": {
"city": "Giza",
"state": "Giza Governorate",
"postcode": "12541",
"country": "Egypt",
"country_code": "eg"
},
"timezoneId": "Africa/Cairo"
},
"date": {
"month": "Mar",
"day": "15",
"year": "2019"
}
}For the last plugin, GeoJSON we want to convert our locations to a valid GeoJSON Point
const geojson = require('geojson');
function GeoJSON({
options = ({ Point, include } = {
Point: ['location.lat', 'location.lon'],
include: ['venue']
}),
mergeFn = data => data
} = {}) {
return data => {
if (!data.location) return data;
try {
const result = geojson.parse(data, { ...options });
return mergeFn({ data, dataToAdd: result });
} catch (e) {
console.log(e);
return data;
}
};
}
module.exports = GeoJSON;index.js
const Crawler = require('./src/Crawler');
const baseUrl = 'https://redhotchilipeppers.com';
const startUrl = `${baseUrl}/tour/past`;
const crawler = new Crawler({ baseUrl, startUrl });
const merge = require('lodash.merge');
const Promise = require('bluebird');
const getFields = (fields = null) => {
return data => {
if (fields) {
const result = {};
fields.forEach(field => {
result[field] = data[field];
});
return result;
}
return data;
};
};
const mergeOutput = (output = null) => {
return ({ data, dataToAdd }) => {
if (output) {
return merge(data, { [output]: dataToAdd });
}
return merge(data, dataToAdd);
};
};
const LocationIQ = require('./src/plugins/LocationIQ')({
fn: data => {
if (!data.location) return null;
return data.location.name;
},
fieldsFn: getFields(['lat', 'lon', 'address']),
mergeFn: mergeOutput('location')
});
const GeoNames = require('./src/plugins/GeoNames')({
fn: data => {
if (!data.location) return null;
if (!data.location.lat || !data.location.lon) return null;
return [data.location.lat, data.location.lon];
},
fieldsFn: getFields(['timezoneId']),
mergeFn: mergeOutput('location')
});
const GeoJSON = require('./src/plugins/GeoJSON')({
mergeFn: mergeOutput('geojson')
});
crawler.start().then(data => {
const plugins = [LocationIQ, GeoNames, GeoJSON];
const pluginReducer = data => {
return Promise.reduce(plugins, (obj, func) => func(obj), data);
};
Promise.mapSeries(data, pluginReducer).then(result => {
console.log(JSON.stringify(result));
});
});Which will output a list of this form:
{
"venue": "The Great Pyramids of Giza",
"location": {
"name": "Giza, Egypt",
"lat": "30.0170059",
"lon": "31.2134513",
"address": {
"city": "Giza",
"state": "Giza Governorate",
"postcode": "12541",
"country": "Egypt",
"country_code": "eg"
},
"timezoneId": "Africa/Cairo"
},
"date": {
"month": "Mar",
"day": "15",
"year": "2019"
},
"geojson": {
"type": "Feature",
"geometry": {
"type": "Point",
"coordinates": [31.2134513, 30.0170059]
},
"properties": {
"venue": "The Great Pyramids of Giza"
}
}
}Nice! We've successfully transformed our data from the original
{
"venue":"The Great Pyramids of Giza",
"location":{
"name":"Giza, Egypt"
},
"date":{
"month":"Mar",
"day":"15",
"year":"2019"
}
}Now, this is a design choice, but I'd like the plugins to go into the actual crawler as middleware rather than transform the data after recieving it from the crawler. This is just a choice and you can decide to leave it as is.
const cheerio = require('cheerio');
const SimpleCrawler = require('simplecrawler');
const range = require('lodash.range');
const PageScrapper = require('./PageScrapper');
const pScrapper = new PageScrapper({ parser: cheerio });
const Promise = require('bluebird');
function Crawler({ baseUrl = null, startUrl = baseUrl }) {
if (!baseUrl || !startUrl) {
throw new Error('baseUrl and startUrl paramerters need to be defined');
}
this.baseUrl = baseUrl;
this.startUrl = startUrl;
this.crawler = new SimpleCrawler(this.startUrl);
this.plugins = [];
}
Crawler.prototype.use = function(plugin) {
this.plugins.push(plugin);
return this;
};
Crawler.prototype.start = function() {
return new Promise((resolve, reject) => {
this.crawler.maxDepth = 2;
this.crawler.interval = 10000;
this.crawler.maxConcurrency = 3;
const results = [];
this.crawler.on('fetchcomplete', (queueItem, responseBuffer) => {
console.log('fetch complete for ', queueItem.url);
const scrapedResult = pScrapper.scrape(responseBuffer.toString('utf8'));
results.push(scrapedResult);
});
this.crawler.on('complete', (queueItem, resources) => {
var merged = [].concat.apply([], results);
console.log('Results Size', merged.length);
const pluginReducer = data => {
return Promise.reduce(this.plugins, (obj, func) => func(obj), data);
};
Promise.mapSeries(merged, pluginReducer)
.then(resolve)
.then(() => {
console.log('Discovery Complete for: ' + this.baseUrl);
});
});
this.crawler.discoverResources = buffer => {
const $ = cheerio.load(buffer.toString('utf8'));
const hrefs = $('.pagination-numbers a[href]').filter(function() {
return !$(this).hasClass('active');
});
const numMatch = /(\d+)/;
const firstHref = hrefs.first().text();
const lastHref = hrefs.last().text();
try {
const startPagination = parseInt(numMatch.exec(firstHref)[0]);
const lastPagination = parseInt(numMatch.exec(lastHref)[0]);
const urls = range(startPagination, lastPagination + 1).map(
num => `${this.baseUrl}/tour/past/page/${num}`
);
return urls;
} catch (e) {
console.log(e);
return [];
}
};
this.crawler.start();
});
};
module.exports = Crawler;We'll use the Crawler.use function to add our plugins and use the same logic as we did previously in index.js to run the middleware inside the crawler.
Now our index.js file is simplified to:
const Crawler = require('./src/Crawler');
const baseUrl = 'https://redhotchilipeppers.com';
const startUrl = `${baseUrl}/tour/past`;
const crawler = new Crawler({ baseUrl, startUrl });
const merge = require('lodash.merge');
const Promise = require('bluebird');
const getFields = (fields = null) => {
return data => {
if (fields) {
const result = {};
fields.forEach(field => {
result[field] = data[field];
});
return result;
}
return data;
};
};
const mergeOutput = (output = null) => {
return ({ data, dataToAdd }) => {
if (output) {
return merge(data, { [output]: dataToAdd });
}
return merge(data, dataToAdd);
};
};
const LocationIQ = require('./src/plugins/LocationIQ')({
fn: data => {
if (!data.location) return null;
return data.location.name;
},
fieldsFn: getFields(['lat', 'lon', 'address']),
mergeFn: mergeOutput('location')
});
const GeoNames = require('./src/plugins/GeoNames')({
fn: data => {
if (!data.location) return null;
if (!data.location.lat || !data.location.lon) return null;
return [data.location.lat, data.location.lon];
},
fieldsFn: getFields(['timezoneId']),
mergeFn: mergeOutput('location')
});
const GeoJSON = require('./src/plugins/GeoJSON')({
mergeFn: mergeOutput('geojson')
});
crawler
.use(LocationIQ)
.use(GeoNames)
.use(GeoJSON);
crawler.start().then(data => {
console.log(JSON.stringify(data));
});Congratulations! You've built a fairly involved crawler and scrapper including a plugin system that feeds into the crawler middleware - both of which you created! Next time, we'll add tests to this crawler to be confident of our code.
